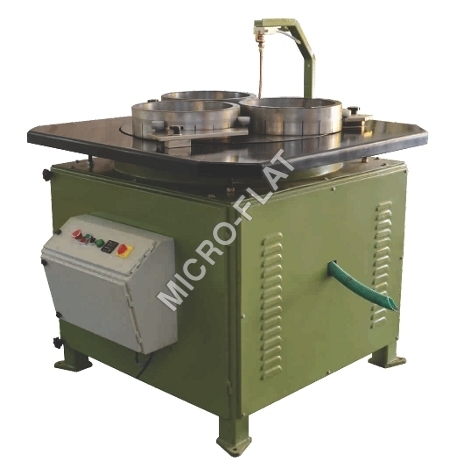

SINGLE SIDED FLAT LAPPING MACHINES

SINGLE SIDED FLAT LAPPING MACHINES
SINGLE SIDED FLAT LAPPING MACHINES
Product Code : 43
Brand Name : Microflat
Product Description

We feel glad to introduce ourselves as the leading entity engaged in manufacturing and exporting a superior quality range of Single Sided Flat Lapping Machines. These machines are assembled by utilizing superior quality components under the supervision of our experts at well equipped production unit. Our entire range is suitable for lapping applications including high stock removal, precision work to light band tolerances and ultra hard materials finishing. These Single Sided Flat Lapping Machines are easily availed in several specifications by our clients in market best price.

Features:

  • Easy installation
  • High durability
  • Superior compactness

ADVANTAGES :

  • Operationally fast, with high degree of repetitive results with no extra skill.
  • Stressing of jobs eliminated as no holding force is required
  • Odd shapes and different materials all can be lapped to a fine finish of 0.6 ┬Ám CLA and flatness to one light band.
  • Variety of materials such as Cast Iron Soft/Hardened Steel, Stainless Steel, Bronze, Aluminum, Carbon, Plastics, Ceramics, Tungsten, Silicon, Stellite, Ferrite, etc. can all be lapped.

TYPICAL APPLICATIONS :

Mechanical seals, Piston Rings,Compressor Components, Pumps & Valves Components, Hydraulic Components, Gauge Blocks, Precision Spacers, Metal Cutting inserts, Bearing Races, Springs, Slitter knives, Fuel Injection Components, Ceramic, Seal & Valve components, Quartz Crystals, Precision Optics, Optical Flats, Metrological/Measuring instrument components and so on.

SALIENT FEATURES:

  • Lap Plate and conditioning Rings made from alloy Cast Iron Castings and provided with serrations ontop for effective removal of sludge and proper flow abrasive to the work piece.
  • Conditioning Rings are held in position by adjustable yoke and guide rollers and rotate freely
  • on Lap Plate to continually keep the Plate flat and true.
  • Design of main spindle bearings impart heavy axial load capacity, maximum stability, long life and
  • smooth performance.
  • A pump feeds the slurry to the Lap Plate through a  jet regulated to required amount.
    Smooth Machined weights and felt pads are  provided for all the conditioning Rings, Incorporated with auto-stop through preset Digital  timer., Main motor is operated using variable frequency drive  for jerk free start and smooth stop operations, as well  as for operation at variable speed.
