Sine Tables

Sine Tables
Sine Tables
Product Code : 39
Brand Name : microflat
Product Description

We are successfully manufacturing and exporting a superior quality Sine Tables in the market. The offered tables are designed in accordance with predefined quality standards of industry at our well equipped production unit. Our entire range is widely used with the aid of slip gauges for precise analysis of tapers as well as fixture for precision machining. Before delivery, it is examined on several standards by our quality controllers. Customers can easily avail these Sine Tables from us in several compatible designs at reasonable price.

Key Features:

  • Excellent finish
  • Easy to operate
  • Rust resistant coating

SALIENT FEATURES:

  • Made generally as per IS-5939-1970 (Single Angle) and IS-5943-1970 for (Compound Angle).
  • Base and swiveling face are made from high duty closed grained Cast Iron Casting conforming to Grade FG-220 of IS-210, duly stress relieved.
  • Working faces are offered in ground/hand-scrapped finish.
  • Roller and slip gauge platform made from alloy steel hardened and ground.

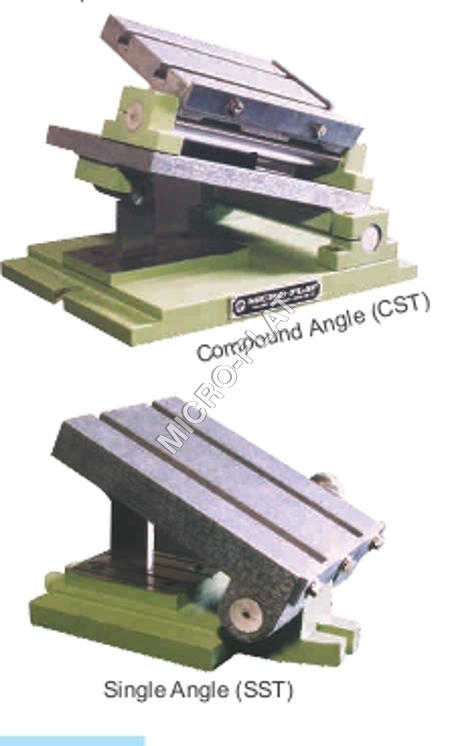

  • Sine Tables (Single Angle & Compound Angle) are available with Magnetic Chuck
  • Top Table can be provided with holes instead of T-slots on both the types.
  • For SST, Table dimensions and base dimensions are same
  • SST/03, SST/04 and SST/05 also available with lead screws for fine adjustment and positive locking.
  • Adjustable bracket provided for all models for positive clamping.


STANDARD SIZES AVAILABLE

  • Model Table dimension (mm) Base dimension (mm) C.D. of Rollers (mm)
  • SST/CST 01 150 x 100 180 x 150 100
  • SST/CST 02 200 x 150 230 x 200 150
  • SST/CST 03 250 x 150 280 x 220 200
  • SST/CST 04 300 x 200 330 x 250 250
  • SST/CST 05 400 x 250 430 x 300 300
  • Finer accuracies and other sizes on request.
