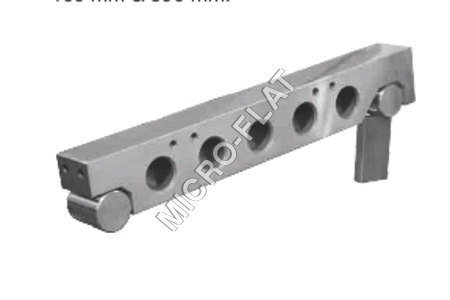

Sine Bars

Sine Bars
Sine Bars
Product Code : 37
Brand Name : microflat
Product Description

With the help of our highly experienced team of the market, we are successfully manufacturing and exporting the excellent quality Sine Bars. The offered bars are designed by utilizing finest quality materials under the guidance of our professionals as per global industry standards. Bars are demanded in several industries for installing with mechanical machines and equipments. Before delivery, these are properly examined on several standards. Our Sine Bars can be easily availed in several dimensions from us in pocket friendly price.

Key Features:

  • Excellent design
  • High strength
  • Light weight

SALIENT FEATURES:

  • Made generally as per IS-5359-1987.
  • Made from alloy steel hardened and ground to  55-60 HRC.
  • Roller Center distance 100 mm, 200 mm, 300 mm,400 mm & 500 mm.

PERMISSIBLE DIFFERENCE IN
READINGS AT TEST POINTS 1 AND 2
 Nominal size   Permissible Difference for setting Angle (m)
    L+ (mm)      15
o            30o           45o
      100             0.8            1.0              1.3
      200             0.7            0.9              1.2
      300             0.6            0.8              1.2
      400             0.6            0.8              1.1
      500             0.5            0.7              1.1
Other sizes on request
