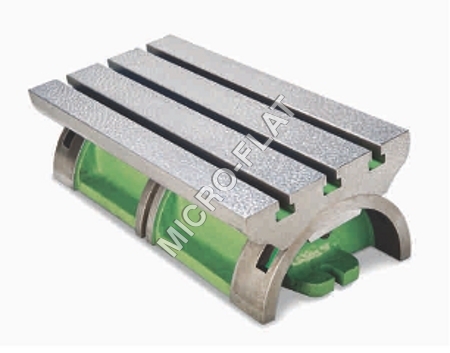

Cast Iron Tilting Tables

Cast Iron Tilting Tables
Cast Iron Tilting Tables
Product Code : CITT 15
Brand Name : microflat
Product Description

We are the certified manufacturer and supplier of premium quality grade Cast Iron Tilting Tables in the market. These are designed by utilizing finest grade cast iron under the supervision of our skilled experts in line with pre-defined industry standards at our well equipped production unit. Our entire range is used for setting works at an angle for milling or other operations in several industries. These Cast Iron Tilting Tables can be easily availed by our clients in several designs at best market price.

Features:

  • Durable structure
  • Excellent design
  • Light weight

Specifications:

The Table has Machined T-slots along length and can swing up to on either side. For setting purpose a degree scale, reading minimum one degree, is graduated on the end face of cylindrical base itself. This ensures better setting accuracy. The Table is set manually to the
required tilt and is locked in the set position by means of two locking clamps held through bolts.

SALIENT FEATURES:

  • Made from close grained plain Cast Iron Castings conforming to Grade FG-220 of IS-210. Casting duly stress relieved.
  • Table top and base are flat and parallel within 0.05 mm per 300 mm
  • T-slots are parallel to the edge of the table and the cylindrical base within 0.05 mm per 300 mm.
  • T-slots parallel to the edges within 0.05 mm per 300 mm
