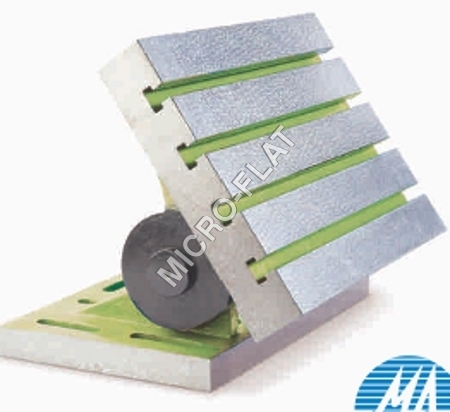

CAST IRON SWIVEL ANGLE PLATES

CAST IRON SWIVEL ANGLE PLATES
CAST IRON SWIVEL ANGLE PLATES
Product Code : 14
Brand Name : microflat
Product Description

Since of inception, we are the most successful company of the market manufacturing and supplying a wide range of Cast Iron Swivel Angle Plates. The offered angle plates are suitable for several mechanical purposes such as mining and molding. These are designed by utilizing superior quality cast iron under the vigilance of our skilled experts in accordance with predefined market standards. These Cast Iron Swivel Angle Plates are available in several technical specifications for our valuable customers.

Features:

  • Compact finish
  • Rust resistant coating
  • High strength

SALIENT FEATURES:

  • Made from close grained Cast Iron Casting conforming to Grade FG-220 of IS-210. Casting duly stress relieved.
  • Working faces flat within 0.010 mm per 300 mm and square and parallel within ± 0.04 mm per 300 mm in two  extreme positions.
  • Edges parallel and square within 0.05 mm per 300 mm
    T-slots parallel to the edges within 0.05 mm per 300 mm.
