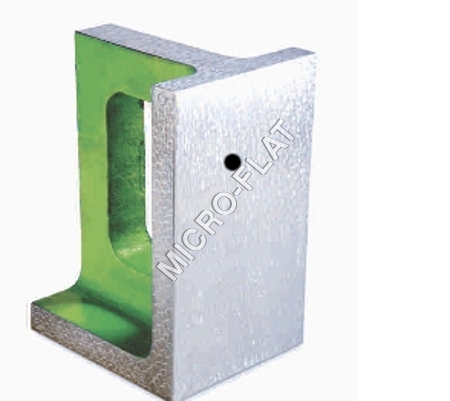

Cast Iron Right Angle Universal Knee Type

Cast Iron Right Angle Universal Knee Type
Cast Iron Right Angle Universal Knee Type
Product Code : CIRAUKT 31
Brand Name : microflat
Product Description

Our company is well specialized in the field of manufacturing and supplying a huge grade of Cast Iron Right Angle Universal Knee Type. These knees are designed by utilizing superior quality cast iron as per predefined quality standards of market at our well resourced production unit. It is particularly demanded in industries like mechanical, engineering and construction for tapping or surfacing of metallic sheets & other items. We offer this Cast Iron Right Angle Universal Knee Type in several sizes at very competitive price to our customers.

Salient Features:

  • Properly designed
  • Rust resistant coating
  • Excellent durability

Specifications:

  • Made from high duty close grained Cast Iron Castings conforming to Grade FG-220 of IS-210.
  • Working faces offered duly hand-scrapped finish.
  • Squareness of faces within 10 microns per 100mm.
  • Parallelism of faces within 10 microns per 100mm.
  • Finer accuracies can be offered on request at extra cost.
  • Teak-ply storing case provided on request at extra cost.=

Size in mm (L x W x H)

  • 100 x 100 x 125       100 x 100 x 150
  • 100 x 125 x 150       100 x 125 x 200
  • 125 x 200 x 300       150 x 175 x 250
  • 150 x 200 x 250       150 x 150 x 200
  • 200 x 250 x 300       200 x 250 x 400
  • 250 x 300 x 400       300 x 300 x 600
  • Other sizes on request.
