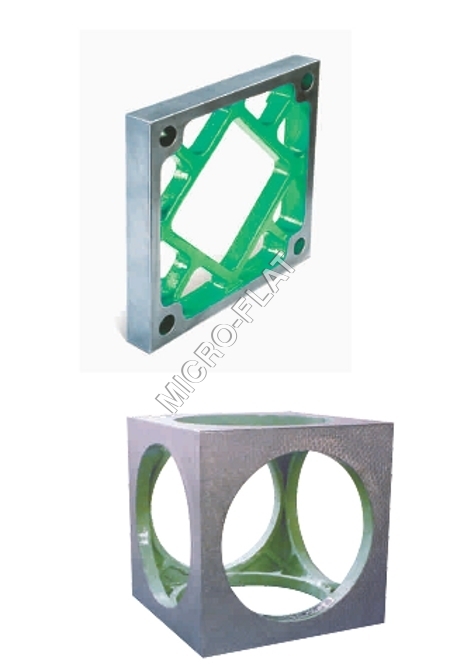

Cast Iron Cube

Cast Iron Cube
Cast Iron Cube
Product Code : 34
Brand Name : microflat
Product Description

Our company is named as the most promising manufacturer and exporter of quality assortment of Cast Iron Cube. The offered cube is widely demanded in automobile, construction and engineering for gauging, inspection and squareness testing. It also helps in checking three axis geometric accuracies of the specimen. These cubes are designed by utilizing superior quality cast iron under the supervision of our experts as per global quality standards on industry. Our clients can avail this Cast Iron Cube in several designs and dimensions from us at the affordable price

key Features:

  • Fine finish
  • Light weight
  • Easy to fix

SALIENT FEATURES:

  • Made from close grained Plain Cast Iron Castings conforming to
  • Grade FG-220 of IS-210. Casting duly stress relieved.
  • All the faces offered duly hand-scrapped finish
     Finer accuracies can also be achieved on request at extra cost
     Teak-ply storing case provided on request at extra cost

STANDARD SIZES AVAILABLE

   Size (mm)                Accuracy (microns)
  (L x W x H)      Flatness    Squareness    Parallelism

 300 x 300 x 50        4                       6                       6
 400 x 400 x 50        6                       8                       8
 500 x 500 x 50        8                       10                    10
 600 x 600 x 50        8                       10                    10
1000 x 1000 x 75      10                    12                     12
1200 x 1200 x 75      12                    15                     15
