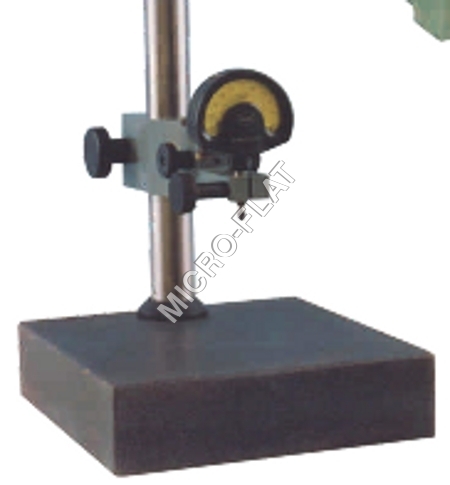

Cast Iron Comparator Stands

Cast Iron Comparator Stands
Cast Iron Comparator Stands
Product Code : CS 36
Brand Name : Microflat
Product Description

From wide range of our products, we are successfully manufacturing and exporting a comprehensive range of Cast Iron Comparator Stands. The offered stands are designed by utilizing superior quality cast iron as per predefined industry standards at well equipped production unit. These are widely demanded in several industries like automobile, electrical and mechanical for making comparison and measurement of metallic items. Our valued customers can easily avail these Cast Iron Comparator Stands from us at reasonable price.

Salient Features:

  • Excellent design, Accurate readings, Light weight equipment
  • Finely lapped Granite is used to make the base whereas Pillar is made from Ground Steel and Housing from Cast Iron.
  • Main housing can be locked at any position and it slides over the pillar.
  • Auxiliary slides mounted with a dial gauge make the fine adjustments possible in Bench Comparitors.
  • Throat depth of 100 mm exists in Bench Comparators and accept up to 200 mm jobs, to suit thimble of 8 mm for admitting dial gauge.
  • Granite Base Universal Comparators do not possess fine adjustment. Symmetrically mounted column spiral grooved pillar allows virtual positioning of the dial gauge over all base points.
  • Pillar mounted Cast Iron Universal Comparators having ground serrated and hardened platform with spiral grooved column with lapped ground finish, allows systematic positioning of the dial gauge virtually over all points on the bases.

    Products Specification:

    STANDARD SIZES AVAILABLE

    Granite Bench Comparator

    Granite Universal Comparator

    Cast Iron Base Comparator

    Base size
    (mm)

    Flatness
    (microns)

    Base size
    (mm)

    Flatness
    (microns)

    Base size
    (mm)

    Flatness
    (microns)

    200 x 150 x 50

    2

    300 x 300 x 50

    3

    200 x 150

    5

    250 x 250 x 50

    2

    400 x 400 x 50

    3

    250 x 250

    5

    300 x 200 x 50

    3

    500 x 500 x 80

    4

    300 x 200

    5

    300 x 300 x 50

    3

    630 x 630 x 80

    5

    300 x 300

    5
