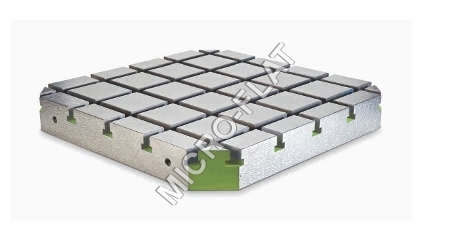

Cast Iron Clamping Pallets

Cast Iron Clamping Pallets
Cast Iron Clamping Pallets
Product Code : CICP 40
Brand Name : Microflat
Product Description

Ever since our inception, we are successfully manufacturing and exporting a wide range of Cast Iron Clamping Pallets. These pallets are structural foundations of a unit load for handling and storage efficiencies. Pallets are mainly demanded in several industries like construction, mechanical and engineering. Our entire range is designed by utilizing superior quality cast irons under the supervision of skilled experts in line with predefined quality standards of industry. These Cast Iron Clamping Pallets can be easily availed at best market price by our clients.

Features:

  • Excellent strength
  • Easy to install
  • Compatible design

SALIENT FEATURES:

  • Made from close grained Cast Iron Castings conforming to Grade FG-260 of IS-210 having hardness within 180-220 BHN, duly stress relieved, Provided with hand-scrapped finish for top, bottom and sides faces.
  • Provided with T-slots of H-8 on top working faces in both the direction and also available with tapped holes at suitable pitch.
  • Bottom face relieved.Sides are hand-scrapped for fixing abutment Plates.
  • Counter bored holes provided for clamping with Machine Table.
  • Flatness & parallelism within 10 microns over 300 mm.
  • Finer accuracies can also be achieved on request at extra cost.
  • Clamping Pallets as per customer's specification and Drawings can also be manufactured.

Products Specification:

Model No.

Overall size
(mm)

Details of tapped holes

Details of T-slots

Size (mm)

Pitch (mm)

Size (mm)

Pitch (mm)

CP400/50H

400 x 400 x 50

16

80

-

-

CP500/50H

500 x 500 x 50

16

100

-

-

CP630/50H

630 x 630 x 50

16

125

-

-

CP800/50H

800 x 800 x 50

16

160

-

-

CP400/75T

400 x 400 x 75

-

-

18

80

CP500/75T

500 x 500 x 75

-

-

18

100

CP630/75T

630 x 630 x 75

-

-

18/22

125

CP800/75T

800 x 800 x 75

-

-

18/22

16
