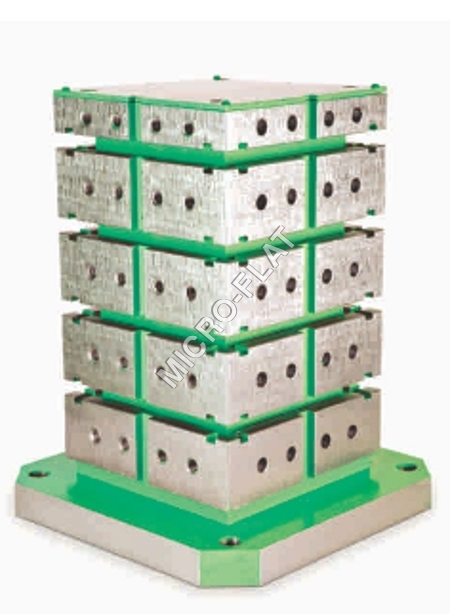

Cast Iron Clamping Cubes

Cast Iron Clamping Cubes
Cast Iron Clamping Cubes
Product Code : 41
Brand Name : Microflat
Product Description

Our company name is the most promising manufacturer and supplier of quality range of Cast Iron Clamping Cube. The offered cubes are widely demanded in several industries such as mechanical, engineering and mechanical for vertical clamping of components on horizontal boring machines, milling machines and horizontal jig mills. This cube is designed by utilizing superior quality components under the guidance of our experts at well equipped production unit. Our clients can avail this Cast Iron Clamping Cube from us at affordable price.

Salient Features:

  • Robust design
  • Easy to install
  • High strength and durability

Multiple faces are provided simultaneously by Tooling Blocks to accurately hold components in vertical plane for machining on horizontal centres. A new face with new components, upon indexing of table, is obtained for machining resulting into reduction of downtime significantly by eliminating multiple set ups.

  • Close grained Cast Iron Castings is used conforming to Grade FG-260 of IS-210 for making the end products having hardness within 180-220 BHN duly stress relieved.
  • To achieve flatness, parallelism and squareness within 25 microns over 300 mm all working faces are provided with hand-scrapped finish.
  • Tolerance within 0.3 mm of pitch between holes/T-slots
  • Request for Vertical tennon slots in the Centre can be made on an extra cost.
  • Hand-scrapped sides of base are provided to fix abutment Plates.
  • Base provided with counter bored holes for clamping with Machine Table.
  • Manufacturing of clamping cubes as per customer's drawings & specification can also be done.


STANDARD SIZES IN DIFFERENT TYPES

Size of top Block
Base dimension Overall height           4-face          2-face       4-face frame          2-face frame
 in mm (L x W)     (mm)                 (mm)             (mm)            (mm)                   (mm)
    400 x 400    450/500              275 x 275        400 x 150       250 x 250              400 x 75
    500 x 500    550/600              350 x 350        500 x 200       350 x 350              500 x 75
    630 x 630    600/700              450 x 450        630 x 250       450 x 450             630 x 100
    800 x 800    700/800              500 x 500        800 x 300       500 x 500             800 x 100
                                                                  Other sizes and larger sizes on request
